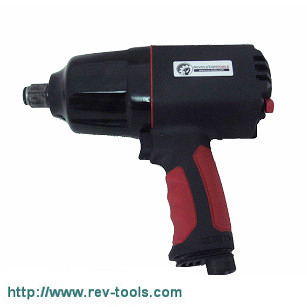

REV-1061, 3/4" IMPACT WRENCH
Description
3/4”Composite Impact Wrench
Rated Capacity : 3/4” Sq. Drive
Free Speed : 4500 R.P.M. ±10%
Air consumption at Free Speed: 5.6 CFM (40 SCFM) Maximum
Air Inlet Size : 3/8”(NPT) internal thread
Impact mechanism: Twin Hammer
Overall Length : 9.5” (240mm)
Net Weight: 8.5 lbs (3.8 kg)
Sound Pressure Level: 103.4 dBA
Sound Power Level: 114.4 dBA
Vibration Level: ≦ 4.3 m/sec2
Output Torque:
Working Torque (at 5 sec): 300-850 ft-lbs(135-1147 Nm)
Max. Torque (at 15 sec): 1100 ft-lbs (1485 Nm)
Features
★ Composite Housing design for light weight
★ High performance of torque by twin hammer mechanism with durable body for heavy duty applications

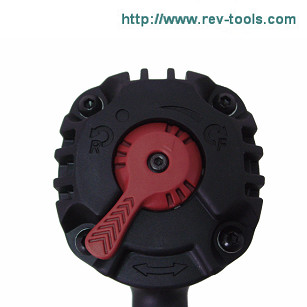

★ Forward / reverse power regulator with 3 forward power settings and one reverse setting for maximum power
|
| |
|
|
