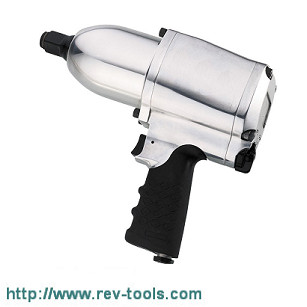

REV- 508P , 3/4" IMPACT WRENCH
Description
3/4" HEAVY DUTY IMPACT WRENCH
Rated Capacity : 3/4” Sq. Drive
F/R Free Speed : 3800 R.P.M. ±10%
Air consumption at Free Speed: 12 CFM (86 SCFM) Maximum
Air Inlet Size (NPT): 3/8"(NPT) internal thread
Min.Hose Size: 1/2"(13 mm)
Impact mechanism: Pin Clutch
Overall Length : 9.8" (250 mm)
Net Weight: 11.2 lbs (5.1 kg)
Sound Pressure Level: 90 dBA
Vibration Level: ≦ 6.1 m/sec2
Output Torque:
Working Torque (at 5 sec): 1000 ft-lbs. (1350 Nm)
Max. Torque (at 15 sec):1200 ft-lbs (1620 Nm )
Features
★ Forward / reverse power regulator with 3 forward power settings and one reverse setting for maximum power |
| |
|
|
