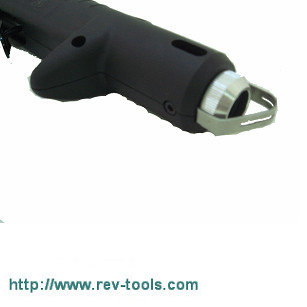

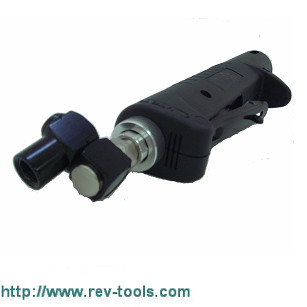

REV-319 , LOW VIBRATION AIR SAW
Description
LOW VIBRATION AIR SAW
Free Speed : 9500 B.P.M. ±10%
Cutting Capacity: 3 mm (Steel)，2 mm (Alum.)
Piston Stroke : 0.394”(10 mm)
Air consumption at Free Speed: 0.72 CFM (6 SCFM) Maximum
Air Inlet Size (NPT): 1/4”
Min.Hose Size: 3/8"(10 mm)
Sound Pressure Level: 85 dBA
Vibration Level: ≦ 3 m/sec2
Net Weight: 1.12 lbs (0.51 kg)
Features
★ Designed with following patents to assure extreme low vibration and operator comfort
★ Portable pneumatic tool assembled with module units in clam shell composite housing.
★ Engineering plastic made clam-shell housing designed for easy service.
★ Suspension vibration-reduction means for portable pneumatic tools.
★ Patented quick change blade holder makes changing saw blade files easy.
★ Safety trigger to prevent accidental start ups and provide operator comfort.
★ Adjustable guard / guide allows operators to set depth of cut.
★ Rear exhaust directs air away from work piece.
|
| |
|
|
