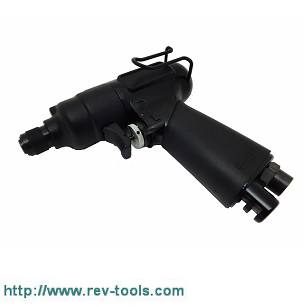

REV-70S6 , 1/4" IMPACT NUT RUNNER
Description
REV-70S6, 1/4" Impact Nut Runner (One-hand operated)
Drive chuck: 1/4" hex quick change
Bolt (fastener) capacity: M5 ~ M12
Free Speed : 10000 R.P.M. ±10%
Air Inlet Size : 1/4”(NPT) internal thread
Min.Hose Size: 1/4"(6.35 mm)
Overall Length : 5.9”(150 mm)
Net Weight: 2.1 lbs (0.96 kg)
Output Torque
Torque Range: 10~65 ft-lbs(84 Nm)
Max. Torque : 70 ft-lbs (91 Nm)
Features

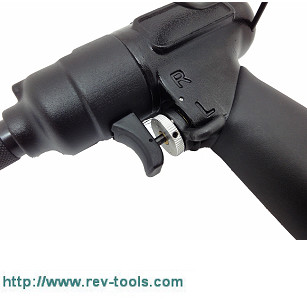

★ One-hand operated Forward/ Reverse/ Power regulator
★ The best power-to-weight ratio, ideal for long (over 5”) wood screw fastening
★ 7 vanes high speed motor and smooth, efficient impact
mechanism creates no torque reaction
★ Tease throttle in 4 section for precise speed control
★ Totally enclosed pin-less impact mechanism made of
Ni-Cr-Mo alloy with advanced heat treatment for long life
★ Aviation grade light metal cylinder with sophisticated
surface coating reduce tool weight to the minimum.
★ 360 degree adjustable exhaust direct air downward away
from operator
★ detachable belt clip |
| |
|
|
